Pilot+ Passengers
1 + 6 up to 7
MTOW
2,500 kg/ 5,512lbs
Max ramge
347 NM
Max endurance
4h13min
Max cruise speed
134 kts
Twin-engine capability for a single-engine price.
From major tourist destinations to the busy airspace over cities, the single-engine H130 (previously known as the EC130 T2) is in widespread use with sightseeing services, charter operators and emergency medical services, among others.
A safe, silent, and comfortable ride
The H130 is an intermediate single-engine helicopter tailored for passenger transport, sightseeing and VIP duties, as well as medical airlift and surveillance missions. As a multi-role rotorcraft, the H130 has a spacious cabin for one pilot and up to seven passengers. Depending on the configuration, it can carry up to two pilots, one stretcher and three-to-four medical crew.
Other H130 enhancements include an active vibration control system and advanced environmental control; improved air conditioning; a cabin interior structure redesign with a full flat floor; a cockpit update for an enhanced human-machine interface integrating a glass cockpit Garmin G500H with synthetic vision system (SVS) and helicopter terrain avoidance and warning system (HTAWS); energy-absorbing seats and integration of a crash-resistant fuel system.
Technical description
Hover ceiling OGE
9,700 ft
Hover ceiling IGE
11,250 ft
Fast cruise speed
128 kts
Max* range with standard fuel tanks at SL
327 NM
Max* endurance with standard fuel tanks SL
4h00 min
Flight envelope (Temperature)
-40°C to ISA +35°C limited to 50°C
Max altitude flight
23,000 ft
Configurations

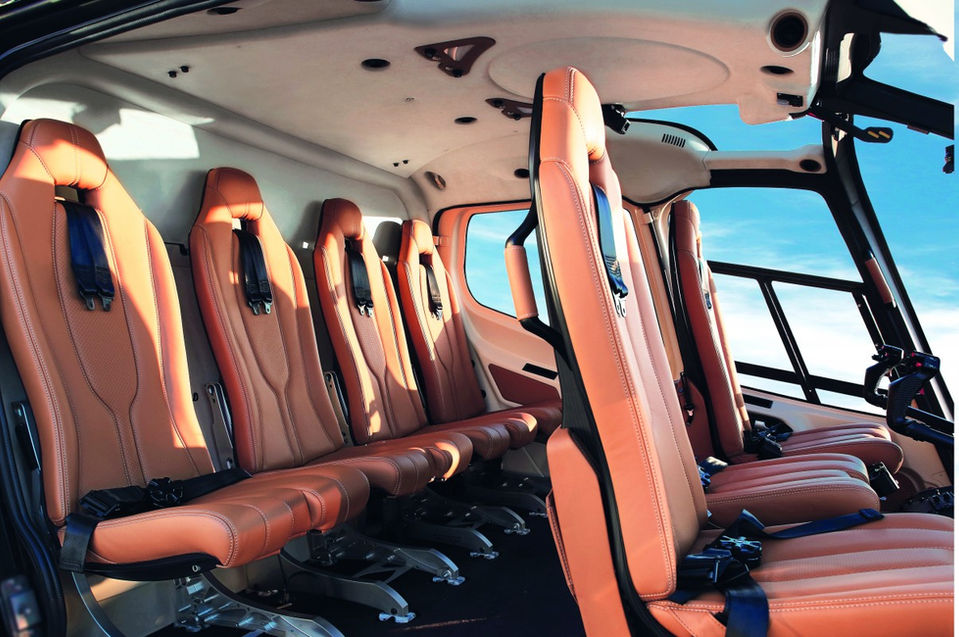

Six seats for passenger transport
The single pilot and six passenger configuration is ideal for passenger transport, private and business aviation and VIP travel. Rear-facing “club seating” can be installed to create an arrangement favorable for work or conversation.
Seven seats for tourism flights
The single pilot and seven passenger layout is conducive to high-volume tourism flights, with passengers facing forward and seated on a raised theatre-style platform for maximum access to exterior views.
ACH130 ASTON MARTIN EDITION
